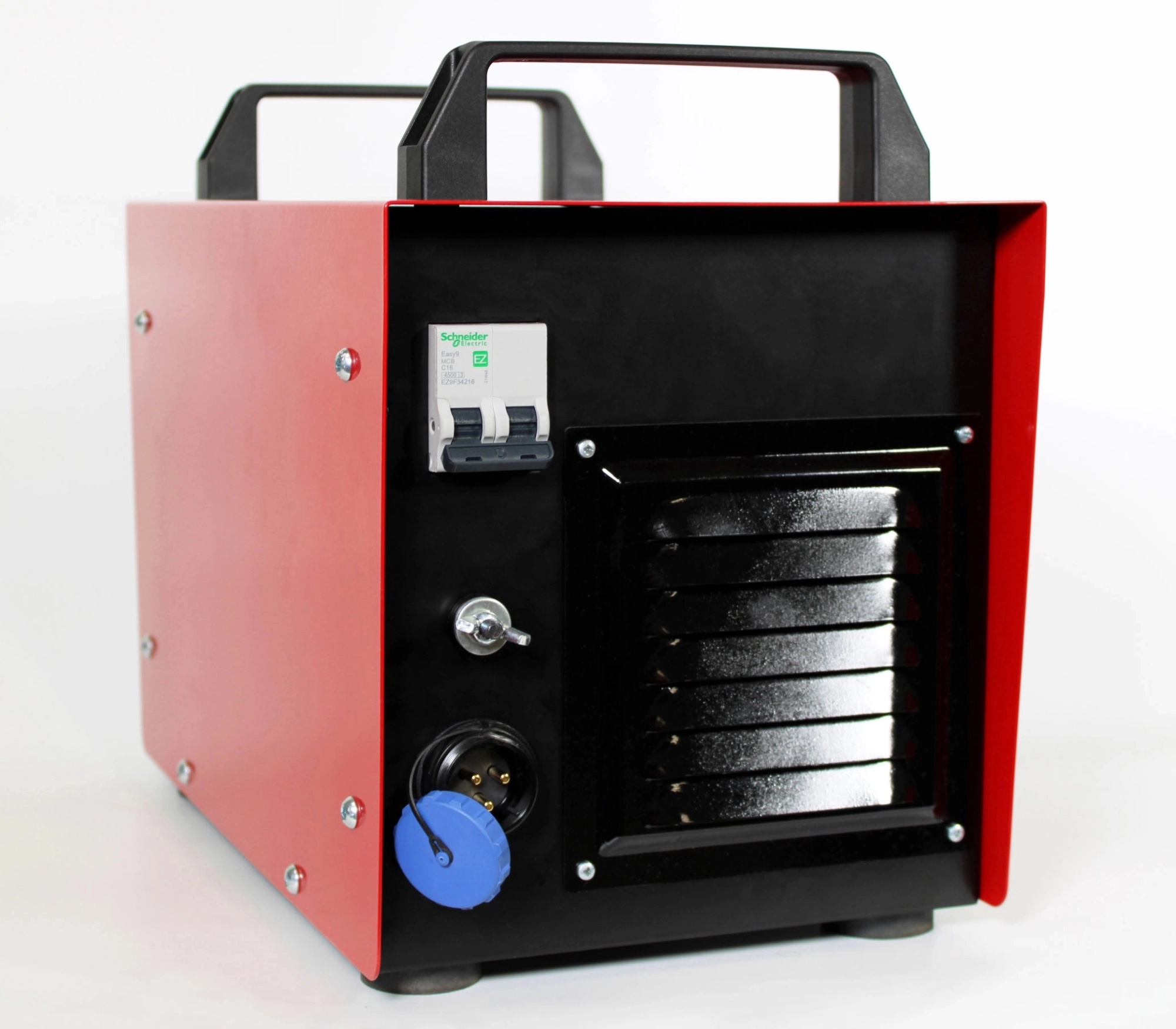

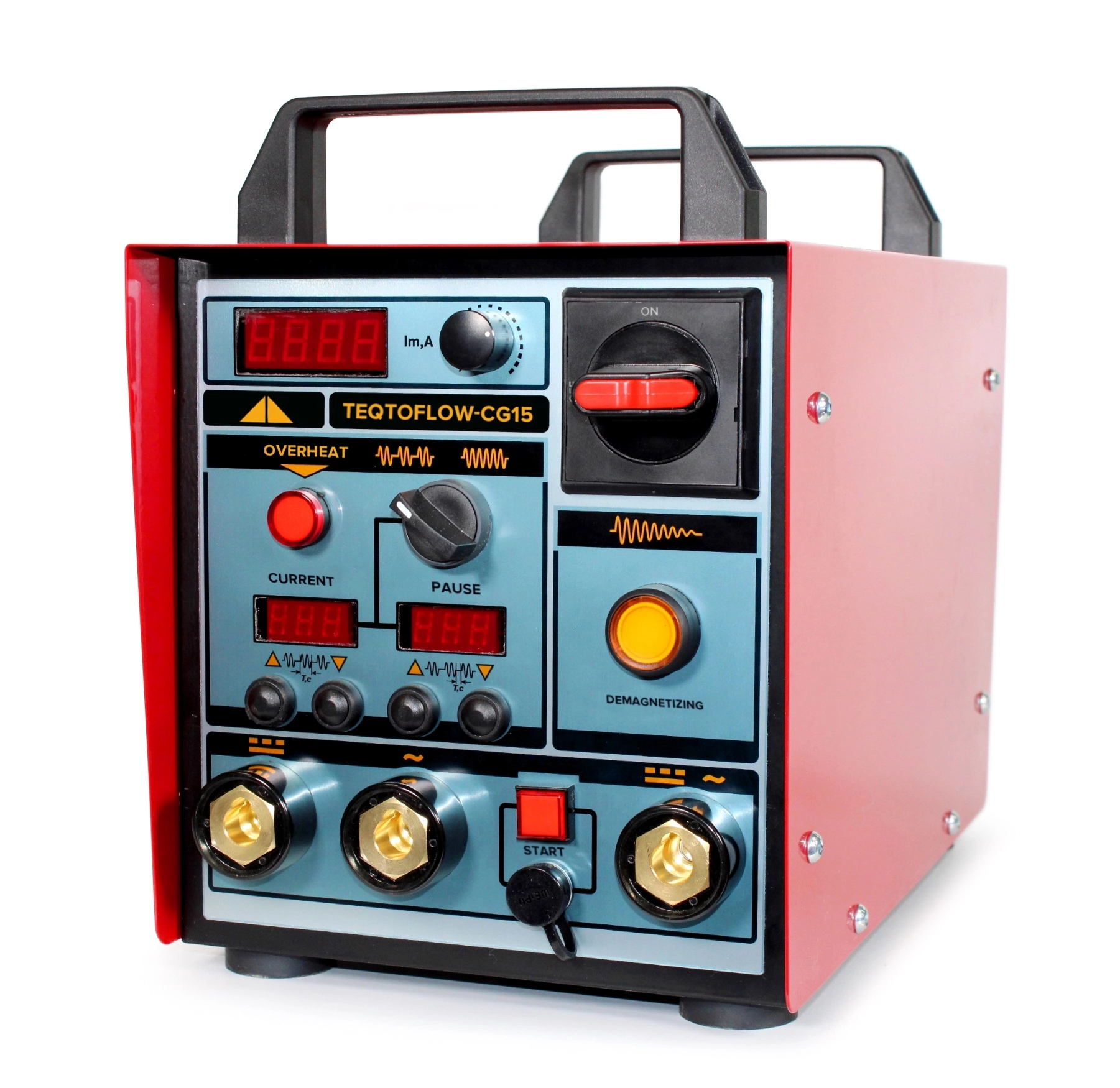

Teqtoflow-CG15 – Portable magnetic particle flaw detector
Magnetic Particle Inspection
Specifically designed to detect surface and subsurface defects in ferromagnetic materials, including incomplete fusion, cracks, and flocks.
It plays a crucial role in assessing the structural integrity, strength, and mechanical properties of diverse workpieces, metal structures, and components of railway transport, both during manufacturing and operational phases.
Operating on the principle of magnetization, it magnetizes the test object to uncover various discontinuities, followed by demagnetization for accurate analysis.
Application
- Building metal structures
- Gear wheels
- Cast parts
- Castings
- Forgings
Operational advantages
- Smooth adjustment of current amplitude
- Offers both constant and impulse current magnetization
- Provides direct indication of magnetizing current amplitude value
- Flexible adjustment of impulse current, including single pulse operation mode
- Customizable magnetization and demagnetization time settings
- Ability to save settings for efficient usage
- Automatic overheating protection ensures safety
- Compatible with various magnetizing devices for enhanced versatility
Benefits
- Combines low weight with high output current value for optimal performance
- AC/DC (rectified half-wave) operating mode allows both circular and longitudinal magnetization
- Designed in accordance with rigorous international standards
- Suitable for operating in stationary magnetic particle test benches
- Offers smooth adjustment of current amplitude, constant current magnetization, impulse current magnetization, magnetization time setting, and demagnetization for precise testing.
Delivery set
- Main unit
- Current cable (2.5 m length, 95 mm cross section) with pistol grip and melt-off electrode
- Current cable (2.5 m length, 95 mm cross section) with pistol grip, melt-off electrode, and current switch on button
- Power cable
- Operating manual
Additional accessories
- Magnetic coil
- Current cable and handles
- Melt-off electrodes made of various metals
- Non-standard length power cable
- Current ON/OFF foot switch
- Custom magnetizing devices
- Trolley
